Aluminium Tilt & Turn Windows
Tilt-and-turn and hidden-vent aluminium windows combining secure ventilation, easy cleaning and a clean facade line.
Send the opening and we tell you the day your price will be ready. We confirm the appropriate product route per project at quote, based on the opening, drawings, performance target, glass and finish.
Lead time and price are worked out for your job at quote.
Download the range brochure (PDF, 5.6 MB)All product categories →
Fabricated in Haydock, St HelensTrade-only supply from our own workshop.
Trade-firstInstallers, builders, architects, specifiers, joiners and commercial teams.
Quote-confirmed specificationProduct route, performance targets, glass and finish are confirmed per project.
Fabrication record
What aluminium tilt & turn windows can actually be built to
These are the limits the factory works to, taken from the fabrication data for the system we make this product in. This is the envelope, not a quotation: the achievable figures for your opening are confirmed against your drawings and a survey.
| Frame system | 58mm |
|---|---|
| Lights per frame | 1 to 4 |
| Leaf width | to 1725mm |
| Height | to 2300mm |
| Maximum leaf weight | 130kg, heavy-duty kit |
| Glazing unit | 24 to 35mm |
| Glazing options | Double, Triple |
| U-value | Uw 1.4 W/m²K double-glazed (Ug 1.0), 1.2 triple-glazed (Ug 0.7), at the 1537.5 x 1480 mm test size. Confirmed at quote for your opening.Read from the U-value table for the system we make this product in |
| Security | PAS 24 routes where specified |
Configurations available
- Tilt-before-turn, tilt-only, turn-only
- central or off-set (260mm) handle
Tested performance
Two mock-ups were tested at different sizes with different results, so both are shown.
| Tested size | Air permeability | Watertightness | Wind resistance |
|---|---|---|---|
| 1100 x 2300mm | Class 4 (600 Pa) | Class 8A (450 Pa) | Class 2 (1200 Pa) |
| 1500 x 1600mm | Class 4 (600 Pa) | CE1200 (1200 Pa) | CE2400 (2400 Pa) |
Each row is a separate tested mock-up. A class is achieved at a size, so these are not a guarantee for every configuration. The classes that apply to your opening are confirmed at quote.
Any security rating above is the tested performance of the system, held by the system manufacturer. VitrineAlu fabricates to the tested configuration and the test evidence belongs to the system it was tested on. Evidence for the configuration you specify is sent at quote.
In place

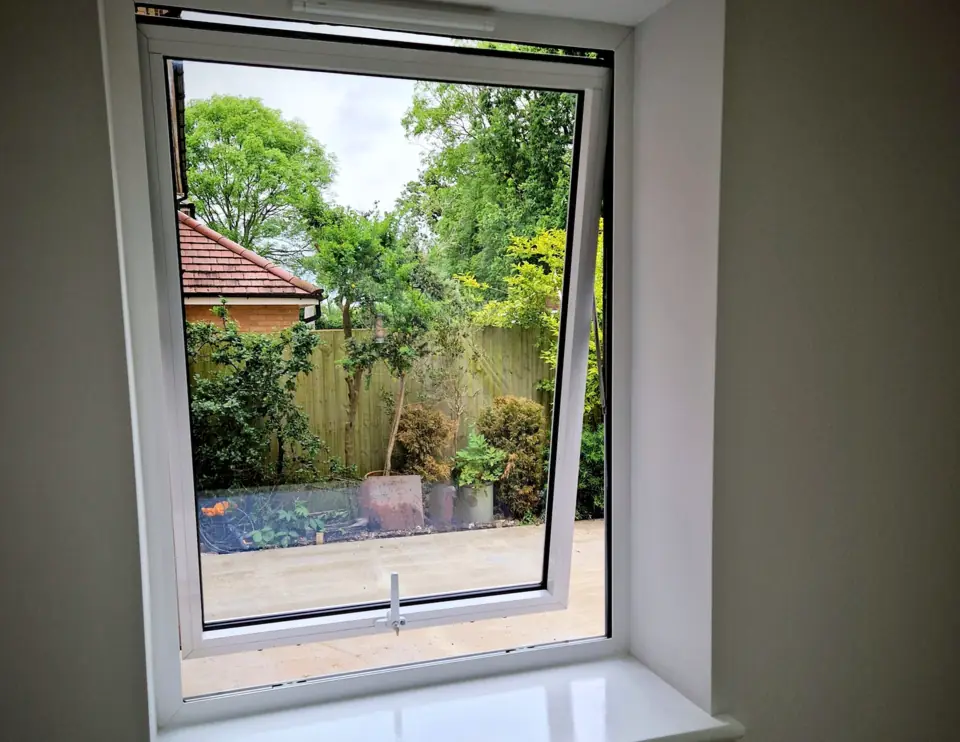

Aluminium Tilt & Turn Windows we have made
Design tool
See your aluminium tilt & turn windows to scale
Use the concept visualiser to explore approximate size, opening, glazing, finish and detailing before a quote request. It is a discussion aid, not a production drawing or evidence of technical suitability; current project review confirms the selected aluminium tilt & turn windows route.
Trade accounts only. Apply for one, or send drawings for an estimate instead.
For homes
Love these for your home?
VitrineAlu supplies through the trade. Send a referral request and we will review the product route before it is passed to your installer, and your details are only passed on with your consent. Your installation contract and warranty remain with the installer you choose to proceed with.
Specification
Aluminium Tilt & Turn Windows
- Frame system
- 58 mm
- Glazing
- 24 to 35 mm
- Security
- PAS 24 routes where specified
- Status
- Capability, confirmed at quote
The figures for this product are in the fabrication record above. The route, glass and hardware that deliver them are confirmed per project.
Request current test evidencePriced first time
What to send
Send these and the route can be confirmed without a back-and-forth.
- Opening sizes, inward-opening clearance and ventilation requirements.
- Whether the project needs tilt ventilation, turn opening, hidden vents or fixed companions.
- Thermal, acoustic, safety-glass and finish requirements.
How we specify
The right product route is chosen per project
Exact specification (U-value, sizes, weights, security class, finish) is confirmed per project at quote, selected to suit the trade brief.
It means you lead with the outcome: light, security, clean sightlines, usable openings, buildable details and a specification that suits the drawings.
More on how routes are specified: security and PAS 24, and energy efficiency and U-values.
Common questions
How does a tilt and turn window actually work?
A tilt and turn window gives two opening modes from one handle. Turn the handle and the sash swings fully inward like a door for cleaning. Turn it back and the top tilts in for secure background air. One frame, two functions, with sashes up to 1.725 m by 2.3 m on the system we fabricate. See our tilt and turn range, and confirm the sash size for your opening at quote.
Can I leave a tilt and turn window open for ventilation safely?
Yes. The tilt position holds the sash inward at the top for background airflow while it stays mechanically locked on every side. Air permeability meets the highest tested class, with watertightness and wind resistance confirmed per project, so driving rain stays out. Harder to force than a propped sash. Check locking against our security guidance.
Do tilt and turn windows help with cleaning and escape?
Yes. Full turn mode swings the sash into the room, so you clean both glass faces from indoors with no ladder, which suits upper floors and flats. Sashes run up to 1.725 m by 2.3 m at up to 130 kg with the heavy-duty kit. Check the clear opening against egress at quote.
What glazing goes in aluminium tilt and turn windows?
Aluminium tilt and turn sashes take double or triple glazing from 24 to 35 mm, with acoustic options (Rw 46 dB on the premium route, where specified), plus solar control, obscure and toughened or laminated safety glass. The hinge set carries heavier triple units. From the system's U-value table: Uw 1.4 W/m²K double-glazed (Ug 1.0), 1.2 triple-glazed (Ug 0.7), at the 1537.5 x 1480 mm test size. Confirmed at quote for your opening. The background is at energy efficiency.
Where do tilt and turn windows suit best?
Tilt and turn windows suit upper floors, flats, stairwells and openings where an outward sash would foul a walkway, balcony or neighbour. The inward action means no external projection and cleaning from inside, with sashes to 130 kg on the heavy-duty kit and a tested security route specified per project. New build or retrofit. Browse the full tilt and turn range, then confirm the sash weight and route at quote.
